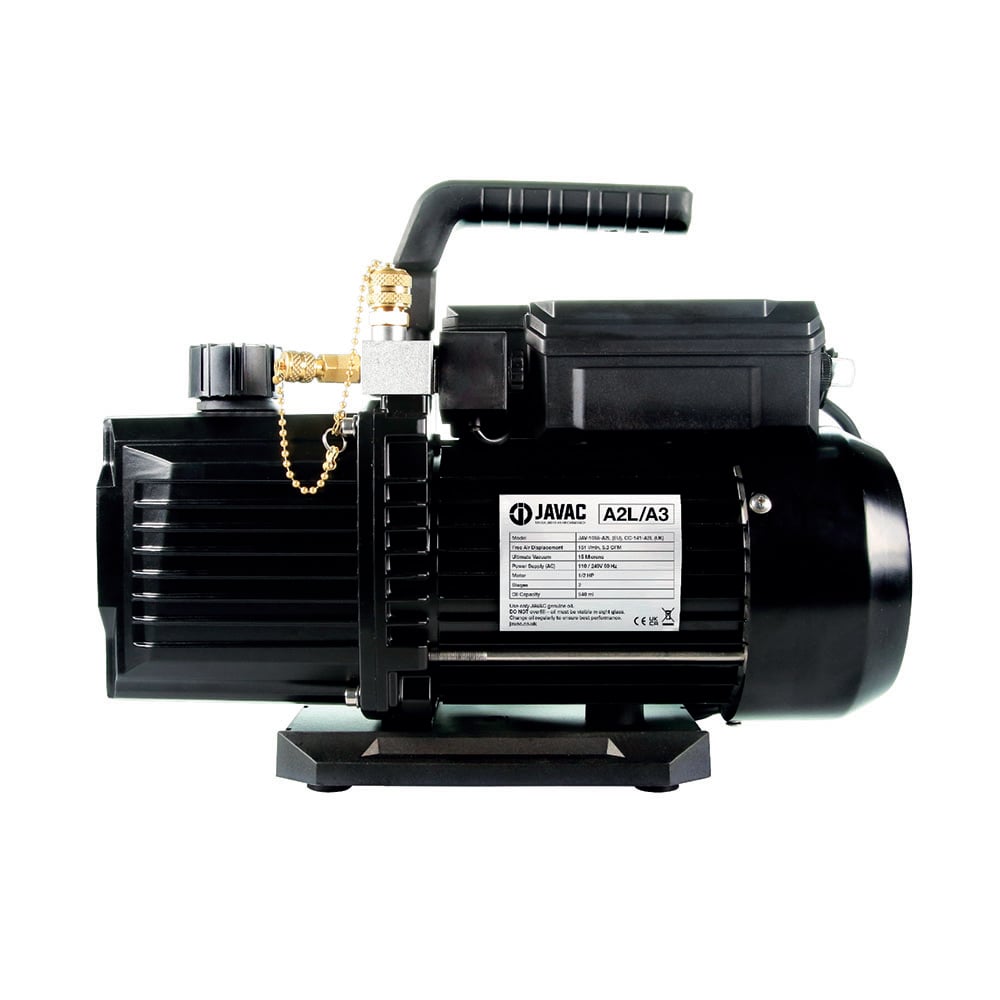

CC Serie A2L/A3
• Gama A2L / A3 de alto rendimiento
• Interruptores a prueba de chispas
• Cable de alimentación de 5 m
• Doble voltaje
• Electroválvula
• Drenaje de aceite de fácil acceso
| Modelo | Referencia |
|---|---|
| JAV-1069-A2L | CC Series A2L/A3 |
| JAV-1065-A2L | CC Series A2L/A3 |
| JAV-1067-A2L | CC Series A2L/A3 |
Características
| Model | CC-31 A2L | CC-141 A2L | CC-231 A2L |
| Part No. | JAV-1069-A2L | JAV-1065-A2L | JAV-1067-A2L |
| Suitability | All standard and A2 / A3 applications | All standard and A2 / A3 applications | All standard and A2 / A3 applications |
| Stage | Double | Double | Double |
| Ultimate vacuum | 15 microns | 15 microns | 15 microns |
| Free air displacement | 40 l/m (1.4 CFM) | 151 l/m (5.3 CFM) | 251 l/m (8.9 CFM) |
| Power supply | Dual voltage 110/240 V 50Hz | Dual voltage 110/240 V 50Hz | Dual voltage 110/240 V 50Hz |
| Motor size | 1/4 HP | 1/2 HP | 2/3 HP |
| Power cord | IEC | IEC | IEC |
| Oil capacity | 140 ml | 540 ml | 620 ml |
| Intake fittings | 1/4” SAE, 3/8” SAE and 1/2” ACME | 1/4” SAE, 3/8” SAE and 1/2” ACME | 1/4” SAE, 3/8” SAE and 1/2” ACME |
| Weight | 4.5 kg | 11 kg | 14.8 kg |
| Dimensions | 265 x 105 x 220 mm | 348 ×140 × 272 mm | 380 × 160 × 285 mm |
