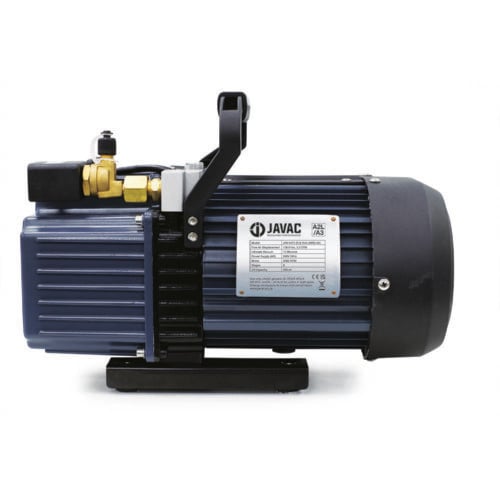

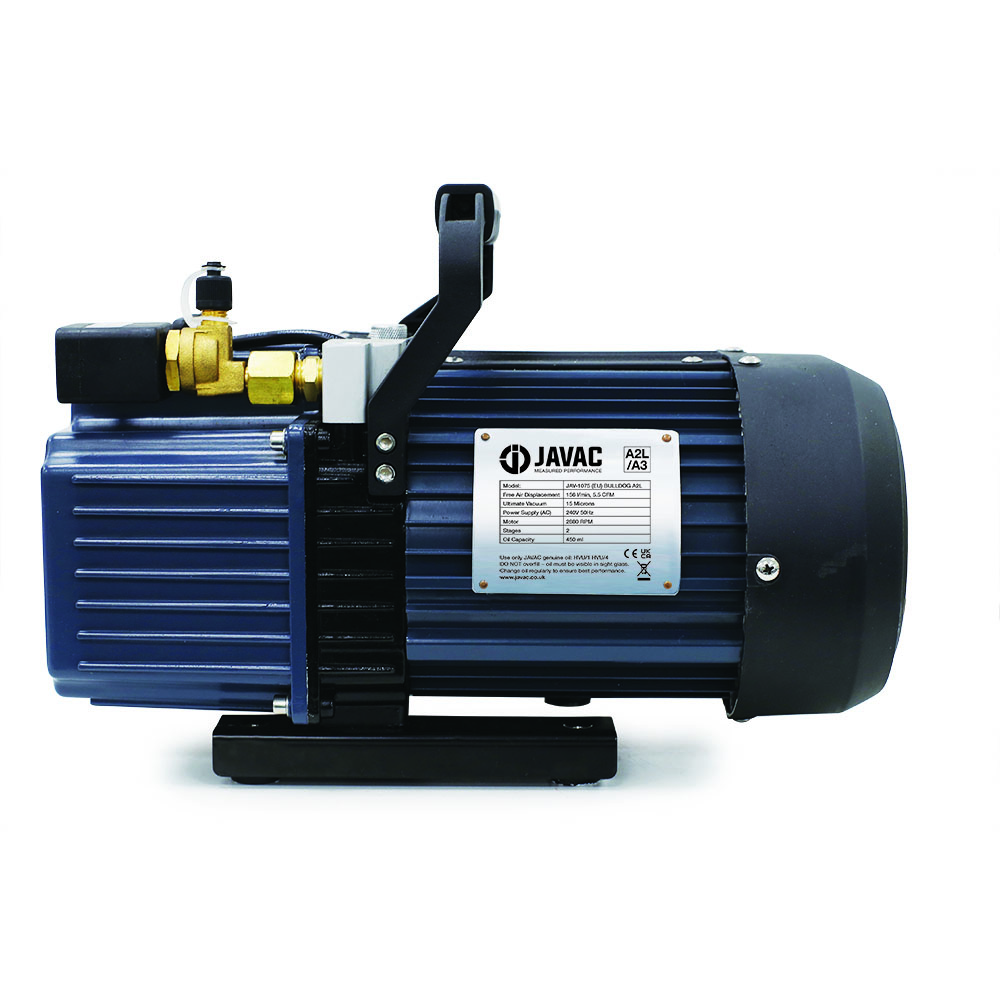

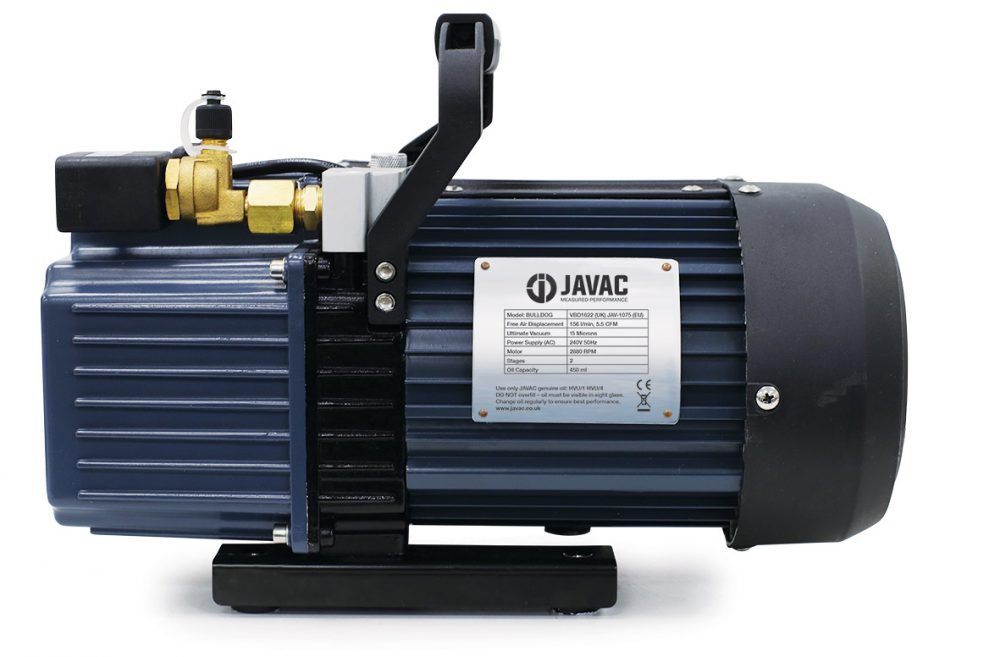

Bulldog A2L DV Spark Proof Vacuum Pump

Bulldog A2L DV Spark Proof Vacuum Pump

• Spark Proof design: Intergrated On/Off switch. 5 m hard wired cable to suit 115 V* or 230 V.
• Dual voltage – switch easily to 115 V* or 230 V.
• Two stage oil sealed vacuum pump.
• Isolation solenoid valve.
• Dual oil mist filters to prevent oil mist

Part No
VBD1622
  • JAVAC 5 star service su#5AC (002)

Specification

Suitability All standard and A2L/A3 applications
Stage 15 microns
Free air displacement 156 l/m (5.5 CFM)
Power supply 115V* or 230 V
Motor size 2880 rpm
Power cord Glanded
Oil capacity 450 ml
Intake fittings 1/4”, 5/16”, 3/8” SAE
Weight 12.5 kg
Dimensions 338 x 212 x 238 mm
