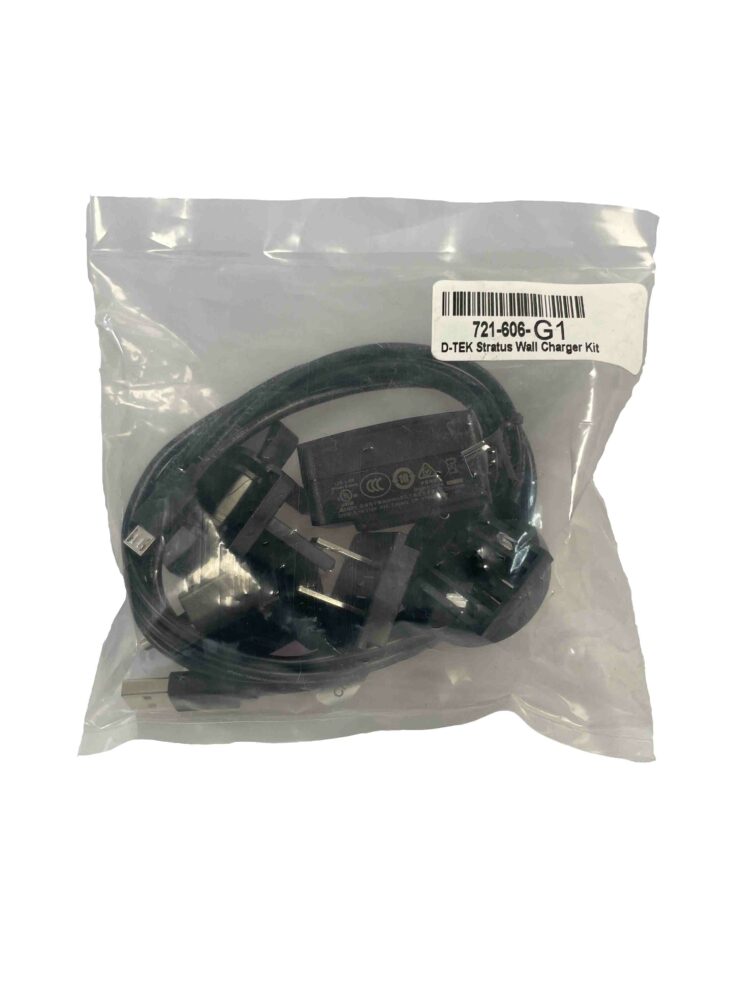

721-606-G1_Wall_charger_D-TEK_Stratus_1_LOW_RES

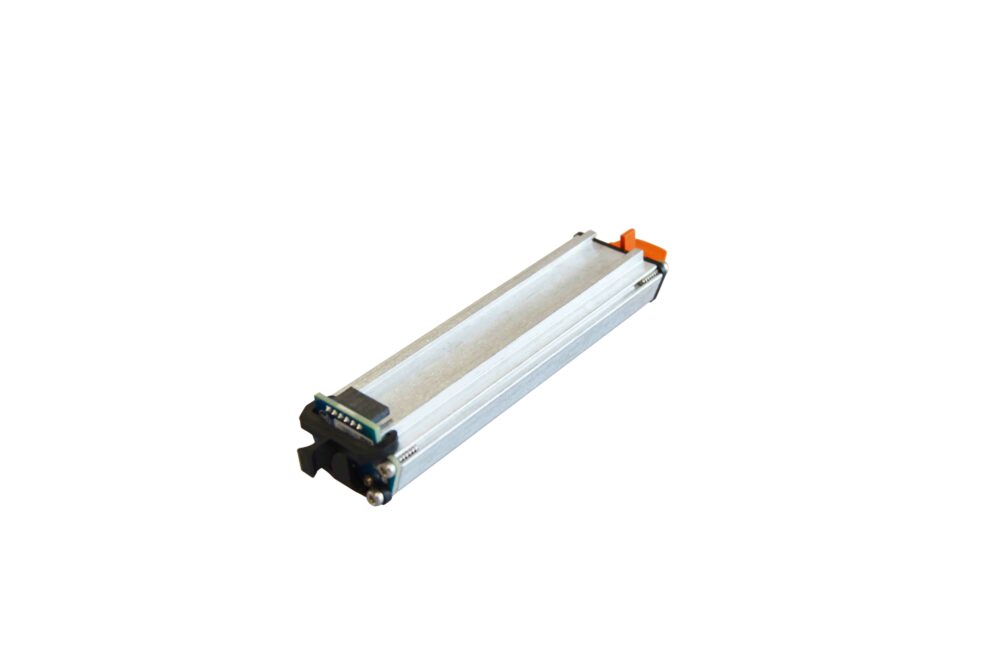

724-701-G1_Refrigerant_sensor-D-TEK_Stratus_3_LOW_RES

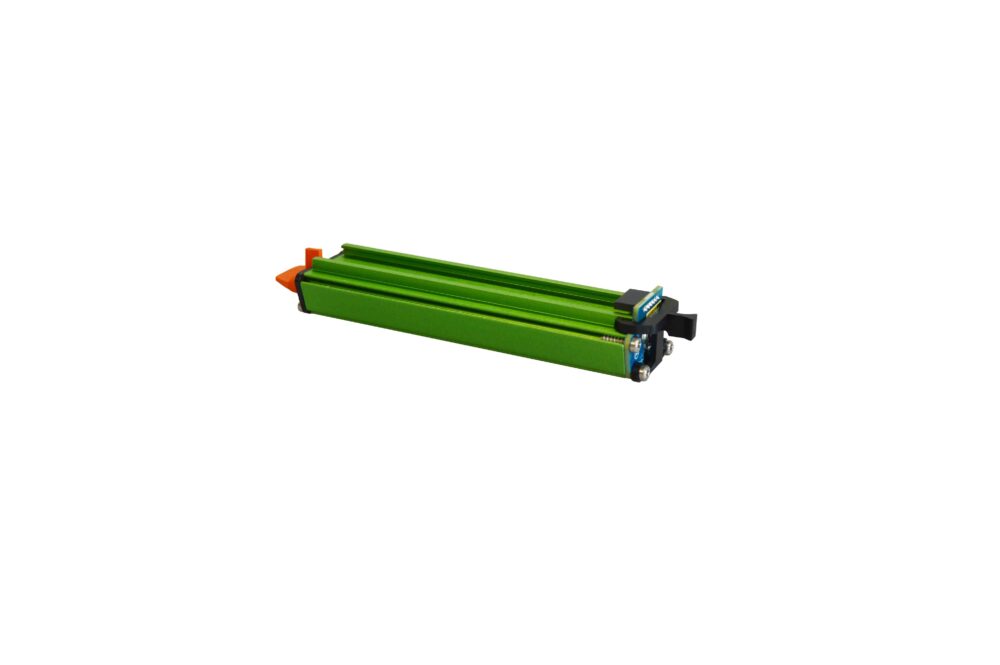

724-701-G2_C02-Sensor_D-TEK-Stratus_3_LOW_RES

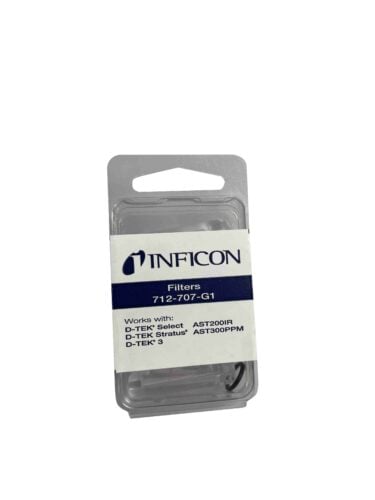

712-707-G1_Filter_cartridges_LOW_RES

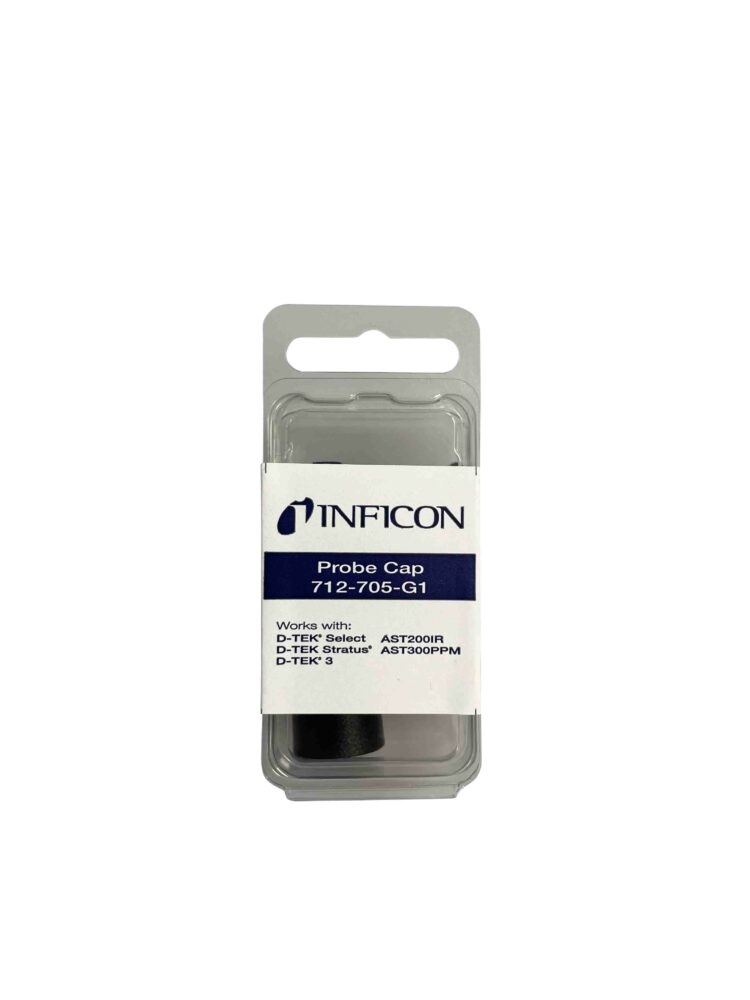

712-705-G1_D-TEK_select_replacement_probe_cap_LOW_RES

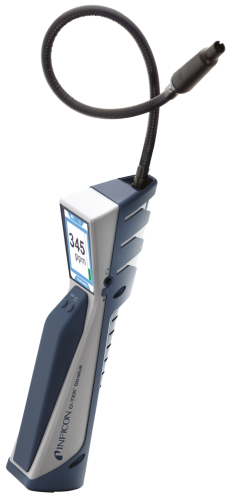

D-TEK Stratus Refrigerant Leak Detector

FEATURES

• Automatic and manual zero modes
• Rugged carrying case included
• Detects all CFCs, HCFCs, HFCs, and HFOs
• Two year replacement warranty

ADVANTAGES

• Innovative cloud hunter mode with ppm readout helps locate leaks faster than ever
• Cloud hunter and pinpoint modes is like having two leak detectors in one
• All new, redesigned infrared sensor
• Longest sensor life in the industry
• Easy field replacement
• New lithium-ion battery
• Quick charge capability
• Easy field replacement

Part No.	Product
724-202-G11	D-TEK-Stratus Leak Detector
724-705-G1	D-TEK 3/Stratus Replacement Battery Door
712-707-G1	Filter cartridges, set of 5
721-606-G1	Wall charger, D-TEK Stratus
712-705-G1	D-TEK select replacement probe cap
724-701-G1	Refrigerant sensor, D-TEK Stratus (Detects CFCs, HCFs, HFOs and blends, including A2Ls)
724-701-G2	CO2 Sensor, D-TEK Stratus

Specification

In the box	D-TEK Stratus, Infrared sensor, Lithium ion battery, AC wall charger, DC car charger, Extra-long probe, Carrying case, Earbuds
Refrigerant sensor (Infrared)	R22, R32, R134a, R404a, R407c, R410a, R422b, R448a, R449a, R452a, R452b, R507 (AZ50), R1234yf, ammonia, SF6, and more
CO2 sensor	R744 (CO2)
Flammable refrigerant sensor	R290, R600a, R441a
Sensitivity per EN14624
R744 (CO2)	2 g/a (0.07 oz./yr) *Requires 724-701-G2 CO2 Sensor
R1234yf	0.5 g/a (0.02 oz./yr)
Ammonia	3 g/a (0.1 oz./yr)
R290	5 g/a (0.2 oz./yr) *Requires 724-701-G3 Flammable Refrigerant Sensor
R134a	1 g/a (0.04 oz./yr)
Power source	Lithium ion battery (rechargeable)
	Micro USB (can operate while charging), 8 hours (Cloud Hunting mode), 10 hours (Pinpoint mode)
Weight with battery	1.10 lb.
Certifications	CE, EN14624:2012, A2L Certified
Probe length (standard probe)	17 in.
