us


< Leak Detection

D-tek 3 Leak Detector

JAV-1283
JAV-1283
703-080-G10
703-080-G10
JAV-1283
703-080-G10

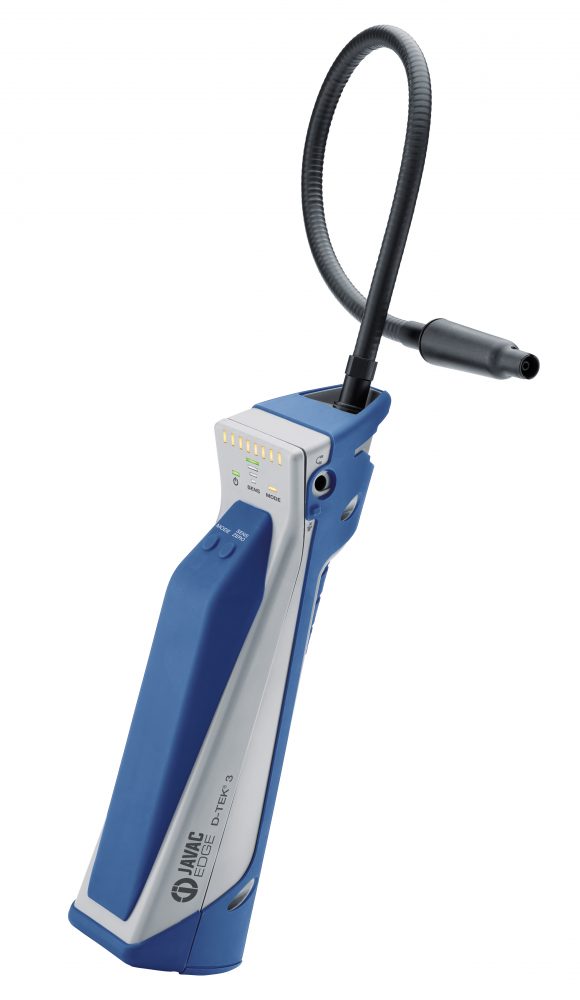

D-tek 3 Leak Detector

Product key features:

  • Low, Medium, High, and Super sensitivity settings
  • Automatic and manual zero modes
  • Rugged carrying case included
  • Detects all CFCs, HCFCs, HFCs, HFOs, and blends (including A2Ls)
  • Detects CO2 with optional CO2 sensor
  • Detects Hydrocarbons with optional A3 Sensor
  • Optional extra-long probe for hard-to-reach areas
  • Two year replacement warranty
  • Longest sensor life in the industry
  • All new, redesigned infrared sensor
  • Easy field replacement
Part no
JAV-1283 (721-202-G1) D-tek 3 Leak Detector
Spare parts Product
712-707-G1 Filter cartridges, set of 5
721-606-G1 Wall Charger
724-705-G1 D-TEK 3/Stratus Replacement Battery Door
712-705-G1 Replacement probe cap
  • JAVAC 5 star service su#5AC (002)

Specification

Sensitivity 1 g/year sensitivity per EN14624
Refrigerant sensor R22, R32, R134a, R404a, R407c, R410a, R422b, R448a, R449a, R452a, R452b, R507 (AZ50), R1234yf, ammonia, SF6 and more
CO2 sensor R744 (CO2)
Flammable refrigerant sensor R290, R600a, R441a
Sensitivity per EN14624
Power Rechargeable Lithium Ion Battery with USB charging cable
R744 (CO2) 2 g/a (0.07 oz./yr) *Requires 724-701-G2 CO2 Sensor
R1234yf 0.5 g/a (0.02 oz./yr)
Ammonia 3 g/a (0.1 oz./yr)
R290 5 g/a (0.2 oz./yr) *Requires 724-701-G3 Flammable Refrigerant Sensor
R134a 1 g/a (0.04 oz./yr)
Operating temperature range -20ºC to 50ºC (-4ºF to 122ºF )
Probe length (standard probe) ~17 in.
Power Rechargeable Lithium Ion Battery with Micro USB charging cable (Can operate while charging and Quick charge capability)
Battery life ~10 hours
Display LED visual and audible
Certifications CE, EN14624:2012, A2L Certified
In the box 1 x D-TEK 3, 1 x Infrared sensor 1 x Lithium ion rechargeable battery, Spare filters, 1 x AC wall charger, Carrying case
