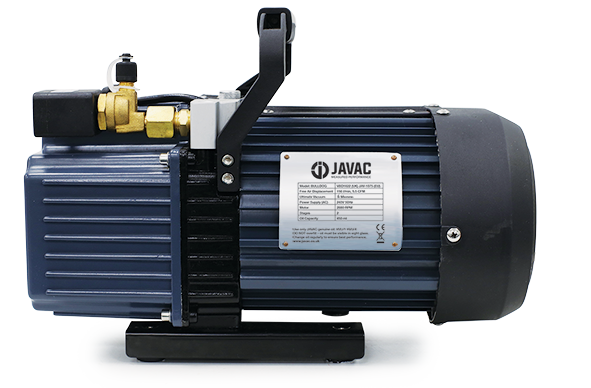

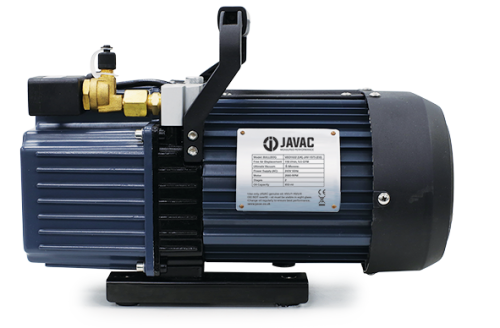

Bulldog A2L Spark Proof Vacuum Pump

Spark proof vacuum pump (R32 ready)

Double stage oil sealed
Spark proof design
Isolation solenoid valve
Anti-oil demister to prevent spillage
Fitted with tri-connector suitable for 1/4, 5/16. 3/8 SAE fittings

Part no	Suitablility
JAV-1075	A2L/A3 & all standard refrigerants (EU plug)

Specification

Stage	Double
Ultimate vacuum	15 microns
Free air displacement (CFM, l/m)	5.5 / 156
Power supply	240 V 50Hz
Motor Size	2880 rpm
Oil capacity (ml)	450
Intake fitting	1/4” SAE 3/8” SAE 5/16" SAE
Weight	12.5 kg (27.5 lbs)
Dimensions	338 x 212 x 238mm (133” x 83” x 94”)
